Cognito Lighting Console

Cognito Top.jpg
Cognito Top.jpg

Cognito Lighting Console

from 3,700.00

The Cognito console solves the complex task of programming shows for systems that include incandescent dimmers, moving lights and color changing LED fixtures. Cognito is network-ready and features a streamlined user interface to guide you through the process of selecting lights, adjusting their attributes, and recording reference libraries, memories and cues. Once programmed, the show is played back manually or with sequenced playlists.

Model:
Quantity:
Add To Cart

Features

  • Up to 1024 output channels
  • No practical limit on the number of Memories, Cues or Playlists
  • Pathport Protocol, ANSI E1.31 sACN and Art-Net
  • Power-over-Ethernet operation
  • Convection cooled - fanless, silent operation
  • Natural language control uses"real-world" terms and values, not channel numbers and arbitrary DMX levels
  • Continually maintained fixture library of over 1000 commonly available multi-attribute lights
  •  7" capacitive touchscreen
  • Context-sensitive help overlays
  • Color backlit faders, buttons and encoders
  • Twenty pageable channel/memories faders with configurable bump buttons
  • Two playbacks, each with an intensity fader, GO button and PAUSE button
  • Four rotary encoder wheels with associated tool buttons
  • "PIN" button for 2-scene operation
  • Four shortcut buttons for selection of Intensity, Color, Position and Shape fixture attributes
  • Four shortcut buttons for Help, Edit, Record and Release functions
  • Two DMX512-A output ports
  • One DMX512-A input port
  • DIN5 ports for MIDI IN, OUT and THRU
  • Two USB ports on the top panel, for saving shows or powering LED worklight (not included)
  • Two USB ports on rear panel for peripherals such as mice and keyboards
  • Rackmount option
  • neatoTM  iOS app extensions for remote control of lights and memory playback

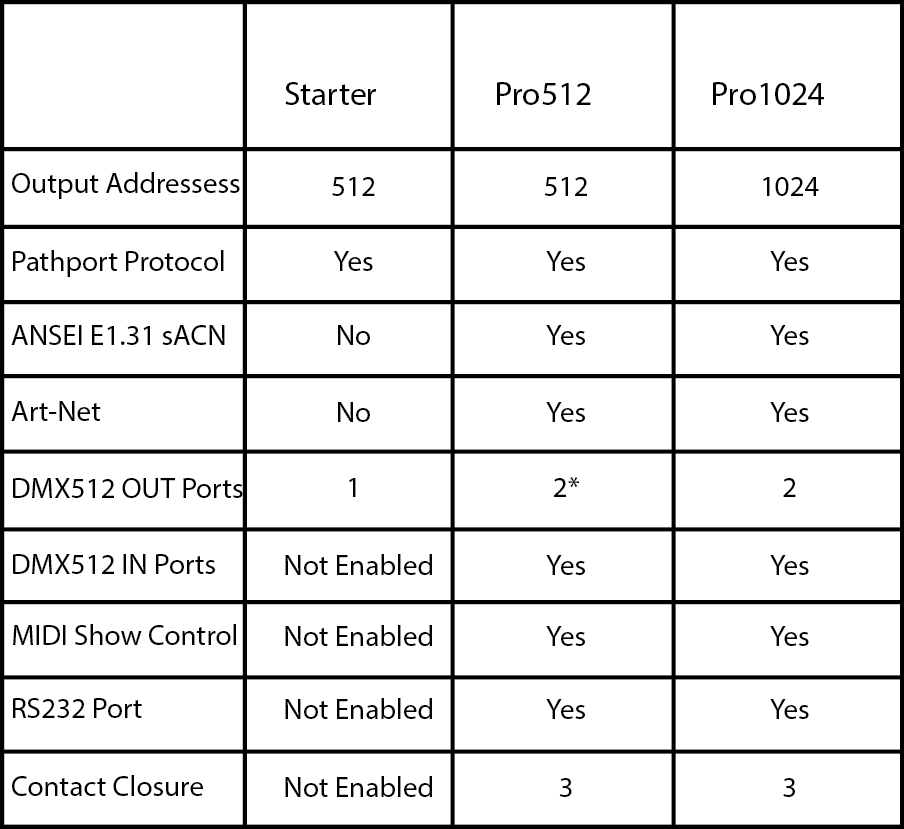

Cognito is available is three models:

* Universe 1 repeated on both OUT ports

* Universe 1 repeated on both OUT ports
